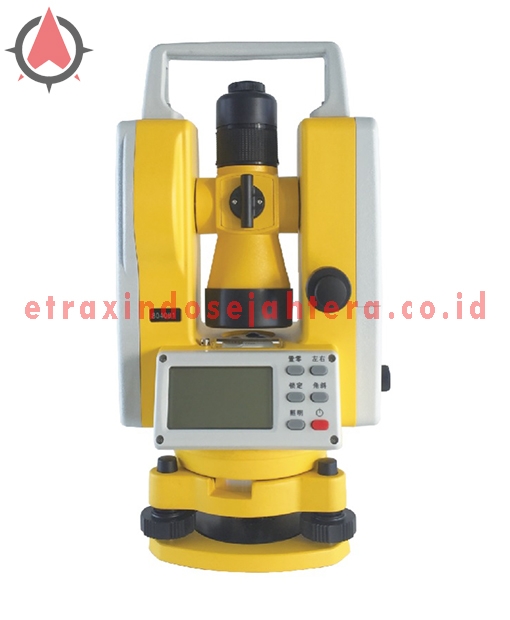

THEODOLITE α-GEO SD2

SPESIFIKASI

Electronic Digital Theodolite SD2 Parameter and Technical Index
Image                                               : Erect
Magnification                                    : 30x
Effective Aperture                            : 47mm
Resolving Power                               : 3,75”
Field Of View                                     : 1° 30’
Measuring Method                           : Photoelectric detection by incremental encoder
Diameter                                           : 79mm
Min. Reading                                     : 1”, 5”, 10”
Measuring Unit                                 : 360° , 400g
Accuracy                                            : 2”, 5”, 10”
Plate Vial                                           : 30” / 2mm
System                                               : Liquid-Electric Detection
Compenation Range                         : ±3’
Resolving Power                               : 6’’
Type                                                   : LCD/Dual Face LCD
Power Resource                                : Rechargeable Li-ion Battery
Voltage                                              : 7,4V / DC 7,4 V
Nominal Capacity                             : 1600mA / BDC 1600 Mah
Operation Time                                : About 20 Hours
Effective Range                                 : ≥ 200m
Position Error                                    : ≤5”
Power                                                : 3,3V / DC 3,3V
Working Temperature                     : - 10°C ~ + 45°C
Operating Temperature                   : - 20°C ~ + 50°C

Kelengkapan :

1x Theodolite SD2

1x Aluminium Tripod
1x Rambu Ukur
