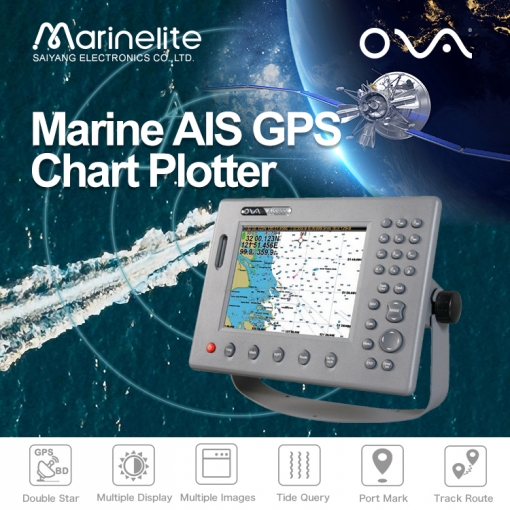

Model

AIS9000-08

Display Size

8"

Resolution

640x480

ExternalDimension

303mmx218mmx99mm

Display Mode

TFT LCD COLOR Display

Operating Mode

Adjustable backlight button, shortcut button, T9 keyboard

Language

Simple Chinese, English, Traditional Chinese

Voltage Range

11~35V DC

Power

High performance, full isolated PWM control of power supply

Power dissipation

≤15W

Safe Distance of Compass

≥1.5 m

AIS Function

TX Channel

1 ch

RX Channel

2 ch

Receive Frequency

156.025~162.025MHz

Default Channel

CH2087,CH2088

Bandwidth

25KHz

Modulation Mode

GMSK

Receive

Sensitivity

Superior to-107dBm

RF Out Power

2 W

TX Channel

87B/161.975MHz

RX Channel

88B/162.025MHz

GPS Receiver

Adopt high speed stable technology

GPS Positioning accuracy:≤15m, 95% accuracy

positioning time:cold start 45s, warm start15s

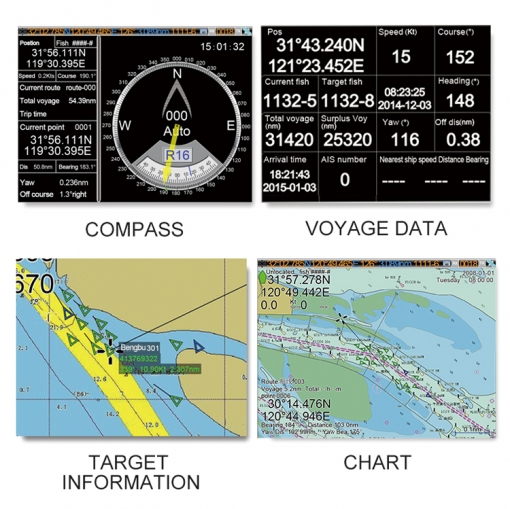

Navigation performance

Waypoint & Mark:6000 points

Route:200 routes, each route contains 99 waypoints

Track:≥200 routes

Include the tide and compass

Intelligent collision avoidance

Interface

1.GPS output:RS-422, NMEA0183, 4800bps

2.AIS input & output:RS-422, NMEA0183, 38400bps

3.Sonar input & output:RS-422, NMEA0183, 115200bps

4.GPS Antenna Interface:BNC base, impedence 50Ω

5.VHF Antenna Interface:UHF base, impedence 50Ω

6.Powerinterface:24V DC

Environment

Temperature
